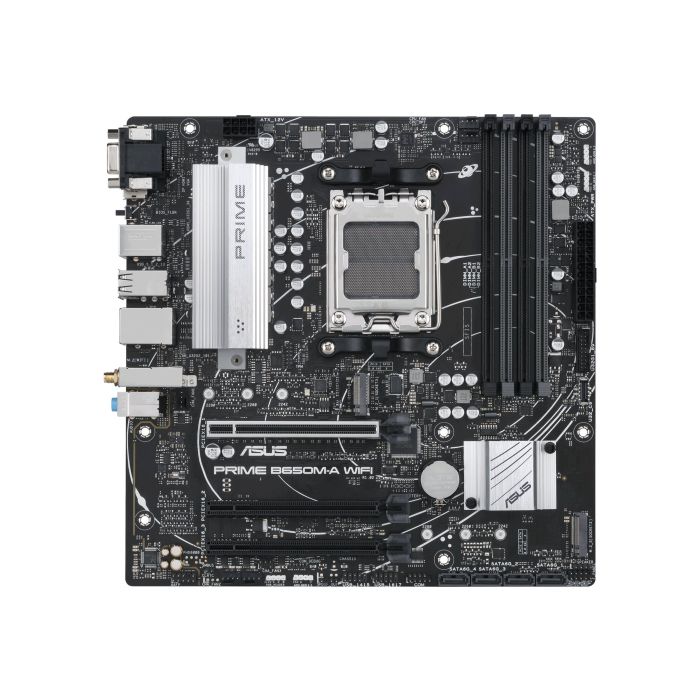

ASUS Prime B650M-A WIFI - Motherboard - micro ATX - Socket AM5 - AMD B650 Chipsatz - USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 1 - 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth - Onboard-Grafik (CPU erforderlich)

236,16 €
inkl. 20% MWSt zzgl Versand
(Versandgewicht 1.32 kg)
ASUS 90MB1C00-M1EAY0
HD Audio (8-Kanal)
Status: Abhol-/Versandbereit in 1-3 Werktagen
ASUS Prime B650M-A WIFI - Motherboard - micro ATX - Socket AM5 - AMD B650 Chipsatz - USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 1 - 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth - Onboard-Grafik (CPU erforderlich) - HD Audio (8-Kanal)
Weitere Informationen
Product Name ASUS Prime B650M-A WIFI - Motherboard - micro ATX - Socket AM5 - AMD B650 Chipsatz - USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 1 - 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth - Onboard-Grafik (CPU erforderlich)
Hersteller-ArtNr 90MB1C00-M1EAY0
specification
Allgemein
Produkttyp
Motherboard - micro ATX
Chipsatz
AMD B650
Prozessorsockel
Socket AM5
Max. Anz. Prozessoren
1
Kompatible Prozessoren
Ryzen (unterstützt Ryzen 7000 Series)
Unterstützter RAM
Max. Größe
128 GB
Technologie
DDR5
Bustakt
5400 MHz (O.C.), 5600 MHz (O.C.), 4800 MHz, 5200 MHz, 5000 MHz
Unterstützte RAM-Integritätsprüfung
Non-ECC, ECC, on-die ECC
Registriert oder gepuffert
Ungepuffert
Besonderheiten
Zwei-Kanal-Speicherarchitektur, AMD EXPO Technology
Audio
Typ
HD Audio (8-Kanal)
Kompatibilität
High-Definition-Audio
LAN
Netzwerkschnittstellen
2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2
Erweiterung/Konnektivität
Erweiterungssteckplätze
1 x CPU
4 x DIMM 288-polig
1 x PCIe 4.0 x16
2 x PCIe 4.0 x16 (1x-Modus)
2 x M.2 socket (2242/2260/2280 M.2 Slot mit Key M)
Speicherschnittstellen
SATA-600 -anschlussstellen: 4 x 7-Pin Serial ATA - RAID 0 / RAID 1 / RAID 10
PCIe 5.0 -anschlussstellen: 1 x M.2 - RAID 0 / RAID 1 / RAID 10
PCIe 4.0 -anschlussstellen: 1 x M.2 - RAID 0 / RAID 1 / RAID 10
Schnittstellen
1 x HDMI
1 x DisplayPort
1 x VGA
2 x USB 3.2 Gen 2
2 x USB 3.2 Gen 1
4 x USB 2.0
1 x LAN (2.5Gigabit Ethernet)
2 x Antenne
1 x Audio Line-In - Mini-Klinkenstecker
1 x Mikrofon - Mini-Klinkenstecker
1 x Audio Line-Out - Mini-Klinkenstecker
1 x PS/2-Tastatur/-maus
Interne Schnittstellen
1 x USB-C 3.2 Gen 1 - Stiftleiste
2 x USB 3.2 Gen 1 - Stiftleiste
4 x USB 2.0 - Stiftleiste
1 x Audio - Stiftleiste
1 x SPDIF-Ausgang - Stiftleiste
1 x SPI - Stiftleiste
1 x Lautsprecher - Stiftleiste
Stromanschlüsse
Hauptstromanschluss, 24-polig, ATX12V-Stecker, 8-polig
Besonderheiten
BIOS-Typ
AMI
BIOS-Funktionen
UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode
Sleep / Wake up
Wake-On-LAN (WOL), Wake On PME
Hardwarefeatures
ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, LANGuard, 6 Layer PCB, Überspannungsschutz, AURA RGB Lighting Control, ASUS 5X Protection III, ASUS Aura Sync, ASUS OptiMem II, ASUS SafeSlot Core+, Q-LED Core, VRM Kühlkörperdesign, BIOS FlashBack-Taste, BIOS FlashBack LED, AMD Precision Boost Overdrive (PBO)
Verschiedenes
Zubehör im Lieferumfang
IO-Abschirmung, ASUS Wi-Fi bewegliche Antenne, M.2 Schraubenpaket
Enthaltene Kabel
2 x Serial ATA-Kabel
Software inbegriffen
ASUS TurboV EVO Utility, ASUS CPU-Z, ASUS AI Suite III, PC Cleaner, WinRAR, Norton AntiVirus (Testversion), ASUS AURA Creator, MyAsus, Armoury Crate, ASUS Fan Xpert 2+
Breite
24.4 cm
Tiefe
24.4 cm
Gewicht (kg) 1.315000
