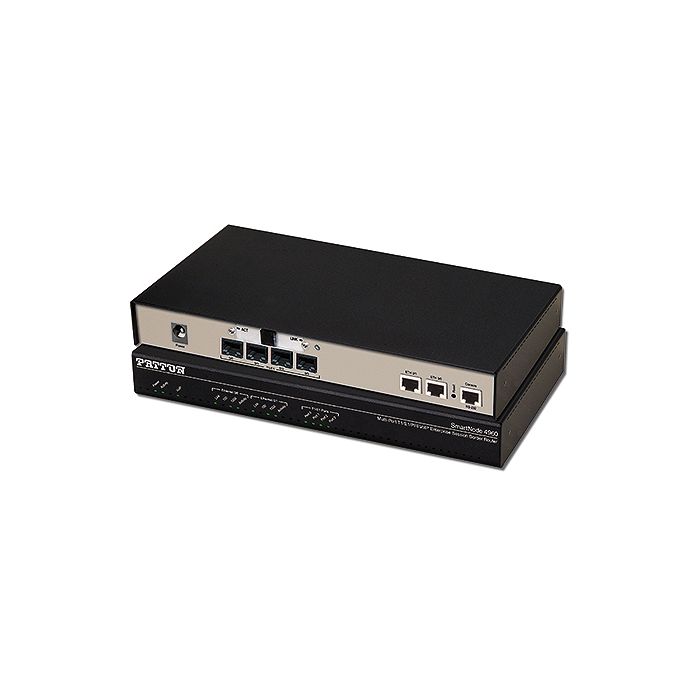

Patton SmartNode 4981 - Leistung - EN 60950 - EN55022 - EN5502 - CE - FCC Part 15 - Part 68 - CS-03 - G.711 - G.723 - G.726 - G.727 - G.729ab - 30 Kanäle - Web/HTTP - CLI - TFTP - SNMP

2.845,98 €
inkl. 20% MWSt zzgl Versand
Patton SN4981/4E30V120R/EUI
4 T1/E1 PRI VoIP GW-Router - 2x GigEthernet - 30 VoIP channels - upgradeable to 120 - Failover Relay - External UI Power - IPv6 ready - High Precision 5ppm Clock Source
Status: Abhol-/Versandbereit in 1-3 Werktagen
Patton SmartNode 4981. LED-Anzeigen: Leistung, Sicherheit: EN 60950, Zertifizierung: EN55022, EN5502, CE, FCC Part 15, Part 68, CS-03. Sprachcodec: G.711, G.723, G.726, G.727, G.729ab, Anzahl Kanäle: 30 Kanäle. Management-Protokolle: Web/HTTP, CLI, TFTP, SNMP, Router Protokoll: BGP, RIP-2. Ethernet LAN Datentransferraten: 10,100,1000 Mbit/s, Netzstandard: IEEE 802.1Q, IEEE 802.1p. Gewicht: 850 g, Abmessungen (BxTxH): 301 x 181 x 45 mm
Weitere Informationen
Product Name Patton SmartNode 4981 - Leistung - EN 60950 - EN55022 - EN5502 - CE - FCC Part 15 - Part 68 - CS-03 - G.711 - G.723 - G.726 - G.727 - G.729ab - 30 Kanäle - Web/HTTP - CLI - TFTP - SNMP
Hersteller-ArtNr SN4981/4E30V120R/EUI
specification
Betriebsbedingungen
Betriebstemperatur
0 - 40 °C
Relative Luftfeuchtigkeit in Betrieb
0 - 90 %
Netzwerk
Ethernet LAN Datentransferraten
10,100,1000 Mbit/s
Netzstandard
IEEE 802.1Q, IEEE 802.1p
Vollduplex
Ja
Gewicht und Abmessungen
Gewicht
850 g
Abmessungen (BxTxH)
301 x 181 x 45 mm
Protokolle
Management-Protokolle
Web/HTTP, CLI, TFTP, SNMP
Router Protokoll
BGP, RIP-2
DHCP-Server
Ja
DHCP-Client
Ja
DMZ-Unterstützung
Ja
Design
LED-Anzeigen
Leistung
Sicherheit
EN 60950
Zertifizierung
EN55022, EN5502, CE, FCC Part 15, Part 68, CS-03
Merkmale
Sprachcodec
G.711, G.723, G.726, G.727, G.729ab
Anzahl Kanäle
30 Kanäle
Sicherheit
Firewall
Ja
VLAN-Unterstützung
Ja
Anschlüsse und Schnittstellen
Anzahl Ethernet-LAN-Anschlüsse (RJ-45)
2
Management-Funktionen
Quality of Service (QoS) Support
Ja
