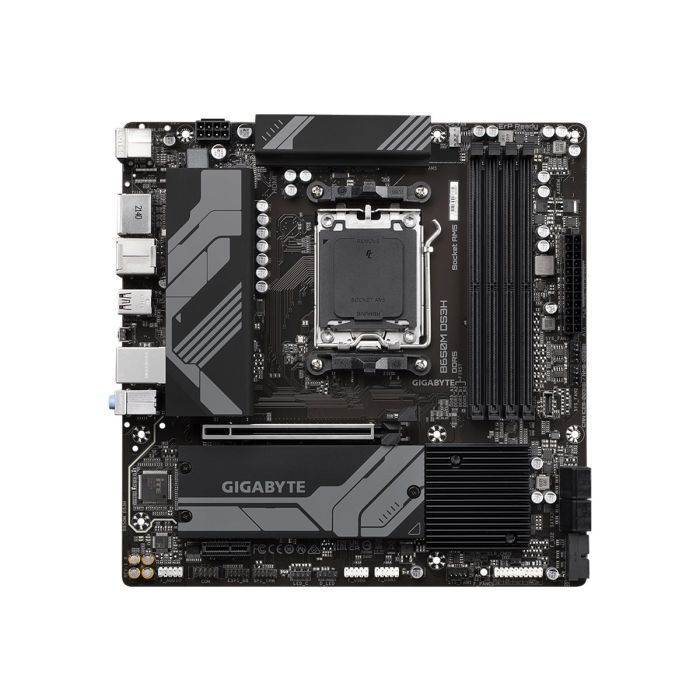

Gigabyte B650M DS3H - 1.0 - Motherboard - micro ATX - Socket AM5 - AMD B650 Chipsatz - USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen2 - 2.5 Gigabit LAN - Onboard-Grafik (CPU erforderlich)

183,89 €
inkl. 20% MWSt zzgl Versand
(Versandgewicht 1.48 kg)
Gigabyte B650M DS3H
High Definition Audio (7.1-channel)
Status: Abhol-/Versandbereit in 1-3 Werktagen
Gigabyte B650M DS3H - 1.0 - Motherboard - micro ATX - Socket AM5 - AMD B650 Chipsatz - USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen2 - 2.5 Gigabit LAN - Onboard-Grafik (CPU erforderlich) - High Definition Audio (7.1-channel)
Weitere Informationen
Product Name Gigabyte B650M DS3H - 1.0 - Motherboard - micro ATX - Socket AM5 - AMD B650 Chipsatz - USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen2 - 2.5 Gigabit LAN - Onboard-Grafik (CPU erforderlich)
Hersteller-ArtNr B650M DS3H
specification
Allgemein
Produkttyp
Motherboard - micro ATX
Chipsatz
AMD B650
Prozessorsockel
Socket AM5
Max. Anz. Prozessoren
1
Kompatible Prozessoren
Ryzen (unterstützt Ryzen 7000 Series)
Unterstützter RAM
Max. Größe
128 GB
Technologie
DDR5
Bustakt
5600 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 5200 MHz
Unterstützte RAM-Integritätsprüfung
Non-ECC
Registriert oder gepuffert
Ungepuffert
Besonderheiten
Zwei-Kanal-Speicherarchitektur, Intel Extreme Memory Profiles (XMP), AMD EXPO Technology
Audio
Typ
High Definition Audio (7.1-Channel)
Kompatibilität
High-Definition-Audio
LAN
Netzwerkschnittstellen
2.5 Gigabit Ethernet
Erweiterung/Konnektivität
Erweiterungssteckplätze
1 x CPU ¦ 4 x DIMM 288-polig ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x1 ¦ 2 x M.2 socket (2280/25.110 M.2 Key M Slot)
Speicherschnittstellen
SATA-600 -anschlussstellen: 4 x 7-Pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -anschlussstellen: 2 x M.2 - RAID 0 / RAID 1 / RAID 10
Schnittstellen
1 x HDMI ¦ 2 x DisplayPort ¦ 1 x Audio Line-In - Mini-Klinkenstecker ¦ 1 x Audio Line-Out - Mini-Klinkenstecker ¦ 1 x Mikrofon - Mini-Klinkenstecker ¦ 1 x USB-C 3.2 Gen 2 ¦ 1 x USB 3.2 Gen 2 ¦ 4 x USB 2.0 ¦ 1 x PS/2-Tastatur/-maus ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 2 x USB 3.2 Gen 1
Interne Schnittstellen
4 x USB 2.0 - Stiftleiste ¦ 2 x USB 3.2 Gen 1 - Stiftleiste ¦ 1 x USB-C Gen2 - Stiftleiste ¦ 1 x Audio - Stiftleiste ¦ 1 x SPI - Stiftleiste ¦ 1 x Seriell - Stiftleiste
Stromanschlüsse
Hauptstromanschluss, 24-polig, ATX12V-Stecker, 8-polig
Besonderheiten
BIOS-Typ
AMI
BIOS-Funktionen
WfM 2.0-Unterstützung, UEFI BIOS, Unterstützung von SMBIOS 2.7, DMI 2.7-Unterstützung, ACPI 5.0-Unterstützung, PnP 1.0a Support
Hardwareüberwachung
Warnung bei Lüfterausfall, Lüftersteuerung
Hardwarefeatures
Q-Flash, Ultra Durable, 2x Copper PCB, 6 Layer PCB, Q-Flash Plus, M.2 Thermal Guard, Solid Pin Power Connectors, RGB FUSION 2.0, GIGABYTE Smart Fan 6, 6+2+1 Phase Power Design, 60A Smart Power Stage
Verschiedenes
Zubehör im Lieferumfang
IO-Abschirmung
Enthaltene Kabel
2 x Serial ATA-Kabel
Software inbegriffen
Norton Internet Security
Kennzeichnung
WEEE, DisplayPort 1.4, HDCP 2.3
Breite
24.4 cm
Tiefe
24.4 cm
Gewicht (kg) 1.484000
FORMFAKTOR Micro/Mini/Flex-ATX
FARBE Braun
